For generations, commissioning a piece of custom jewelry required a significant leap of faith. A client would describe their vision, look at a hand-drawn sketch, and wait weeks to see the finished gold or platinum mounting - hoping the final ring matched the picture in their mind. If a setting sat too high, if the band felt too thick, or if the gemstone layout felt off-balance, altering the finished metal was difficult, costly, and stressful.

At Motek Jewelry Design Studio in Airmont, we have eliminated that guesswork entirely. Through advanced 3D CAD (Computer-Aided Design) modeling and photorealistic digital rendering, we give our clients the ability to inspect, measure, and perfect every millimeter of their piece before a single grain of precious metal is cast. Below, our master studio breaks down how modern 3D rendering guarantees an error-free design process, and what you are actually looking at when reviewing a digital CAD render.

Part 1: From Sketch to Pixels - The Power of 3D CAD Modeling

Custom design begins with an idea - whether inspired by a family heirloom, an artistic concept, or a desire for a unique engagement band. Once our design team establishes the foundational layout, we translate those concept sketches into a high-precision 3D digital model using specialized jewelry CAD software.

Unlike a flat two-dimensional drawing, a 3D CAD model builds your jewelry in a virtual studio environment. This allows us to inspect the mounting from every conceivable angle:

• 360-Degree Visualization: We can rotate the piece continuously, viewing the profile height, under-gallery architecture, and side elevations.

• Exact Stone Layouts: Every diamond or gemstone is imported according to its exact millimeter dimensions. Whether placing round brilliant cuts or marquise diamonds in a staggered eternity pattern, the digital layout ensures perfect symmetry and spacing.

• Structural Tolerances: CAD software measures metal thickness, band width, and wall density down to hundredths of a millimeter, ensuring the piece is structurally sound for a lifetime of wear before manufacturing ever begins.

Part 2: The Pro-Tip Eye — Why Do Prongs Look Oversized in 3D Renderings?

When clients view their first digital rendering - such as the CAD preview for a custom marquise and round diamond band - one of the most common questions they ask is: "Why do the prongs look so tall and thick?"

This is a crucial distinction between digital casting CADs and finished jewelry, and understanding it gives you a true insider’s look into master bench craftsmanship.

The Science of Casting vs. Stone Setting

In 3D renderings, prongs intentionally extend high above the gemstones and appear squared or heavy. This is not a design flaw - it is an essential step in the lost-wax casting process.

1. Printing & Casting: The CAD model is 3D-printed in a specialized casting wax or resin and then cast into 14k gold, 18k gold, or platinum. At this stage, the metal prongs must be long and rigid so the master setter has sufficient material to work with.

2. Notching: Once the raw metal casting is cleaned, the bench jeweler uses a specialized burr to cut a tiny interior notch (a seat, also called a bearing by setters) into each prong at the precise height of the diamond's girdle.

3. Bending & Securing: The setter places the stone into these custom seats and carefully bends the top of the prong over the crown of the gemstone using precise hand pressure.

4. Filing & Sculpting: Finally, the excess prong length is cut away. The master jeweler files, rounds, and hand-polishes each prong tip into a smooth, elegant claw, bead, or button shape that sits flush against the diamond without snagging on clothing.

When you look at a 3D rendering, you are viewing the functional architectural blueprint engineered for casting. The finished piece will feature delicately sculpted, perfectly fitted prongs holding your stones with complete security.

Part 3: Guarantees of an Error-Free Custom Process

Reviewing a photorealistic rendering transforms custom jewelry creation into an interactive, stress-free experience. Because the CAD model reflects exact real-world dimensions, it provides absolute clarity before production begins.

1. Dimensional Precision

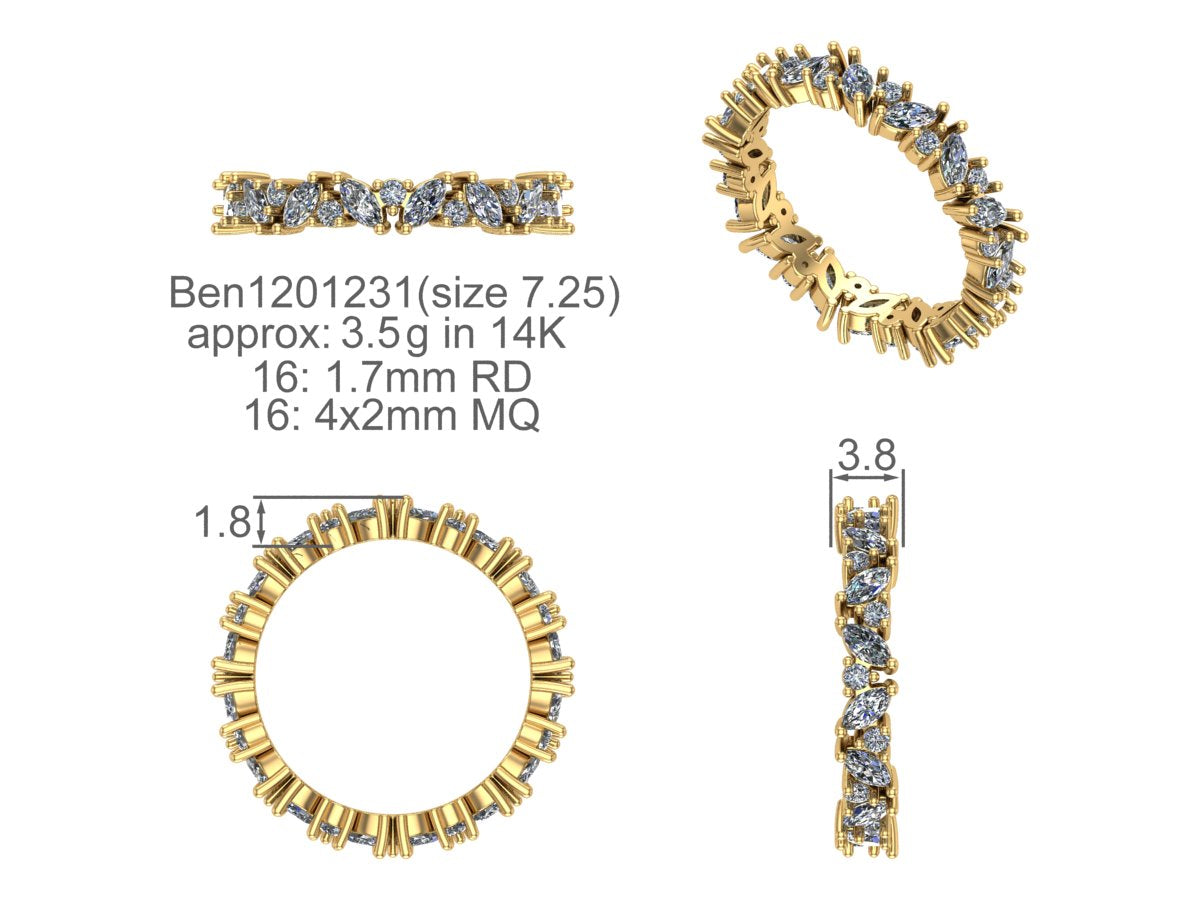

CAD renders display exact digital measurements directly on the file - including finger size (such as size 7.25), band width (e.g., 3.8mm), profile elevation (e.g., 1.8mm height), and precise stone counts (e.g., 16 round diamonds at 1.7mm alongside 16 marquise diamonds at 4x2mm). This eliminates any unexpected surprises regarding how wide or delicate the band will feel on your hand.

2. Risk-Free Design Tweaks

Want to see how your ring looks in 18k yellow gold versus platinum? Interested in widening the band slightly or adjusting the height so it sits flush against a wedding ring? In CAD, we can adjust parameters instantly, generating updated renders so you can compare options side by side with zero risk or wasted materials.

3. Perfect Gemstone Alignment

For complex eternity bands or intricate vintage mountings, manual stone-setting in raw metal without prior CAD planning can result in uneven spacing. Digital CAD ensures that every seat is pre-aligned, allowing accent stones to nest seamlessly alongside one another.

Our commitment to cutting-edge technology and flawless craftsmanship is why Rockland County trusts our studio for custom creations. As our client devorah Grunberger shared in a Google review:

"I had a great experience - quick turnaround, very professional, and truly reliable. Monsey has been needing a shop like this, and now we finally have it."

Part 4: Start Your Custom Journey at Motek

Bringing a piece of jewelry from imagination to reality should be an exciting, fulfilling journey. By pairing state-of-the-art 3D CAD modeling with traditional master bench craftsmanship, we ensure that the custom ring, pendant, or bracelet you approve on screen is executed flawlessly in gold or platinum.

If you have an idea for a custom piece, an heirloom restyle, or a unique wedding band, our team is ready to guide you through every step of the rendering process. You can start by filling out our custom design consultation form to submit your inspiration images and ideas directly to our design team. If you have an existing piece that needs structural evaluation or prong work, you can also connect with us through our online jewelry repair form.

In summary, 3D CAD renders provide a transparent window into the manufacturing process, ensuring complete accuracy before casting ever takes place. We invite our neighbors throughout Monsey, Airmont, and all of Rockland County to visit our Route 59 showroom today for a complimentary jewelry cleaning and inspection. Let us show you our 3D CAD capabilities in person and turn your dream piece into an enduring reality!
